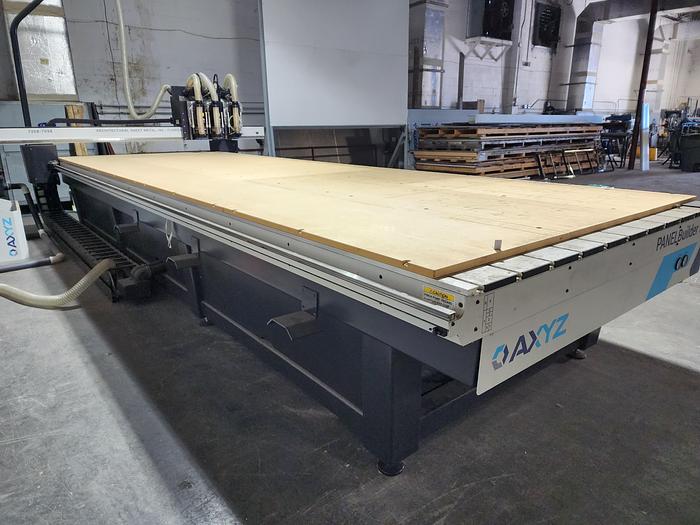

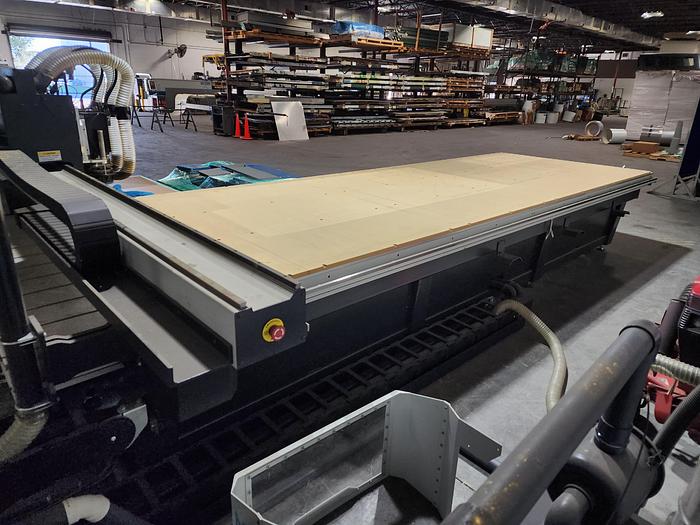

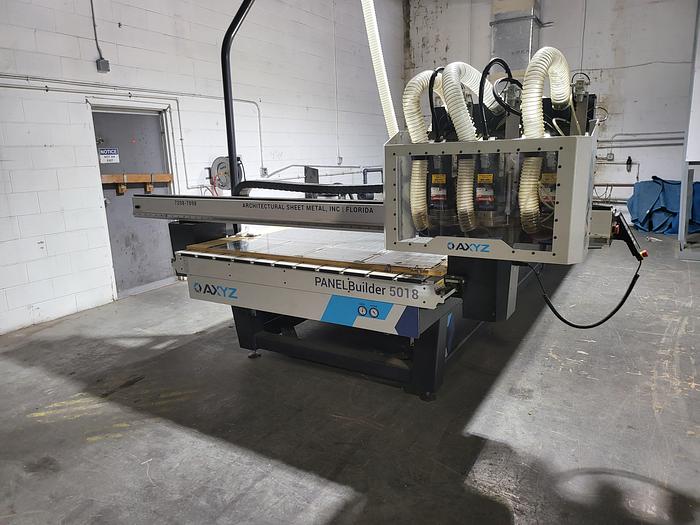

AXYZ Panelbuilder 5018 CNC Router
![Used AXYZ Panelbuilder 5018 CNC Router](https://i.machineryhost.com/82b8a3434904411a9fdc43ca87cee70c/79edea7ca3903778bc5ff153ccccd910/large-used-axyz-panelbuilder-5018-cnc-router.jpg)
Description

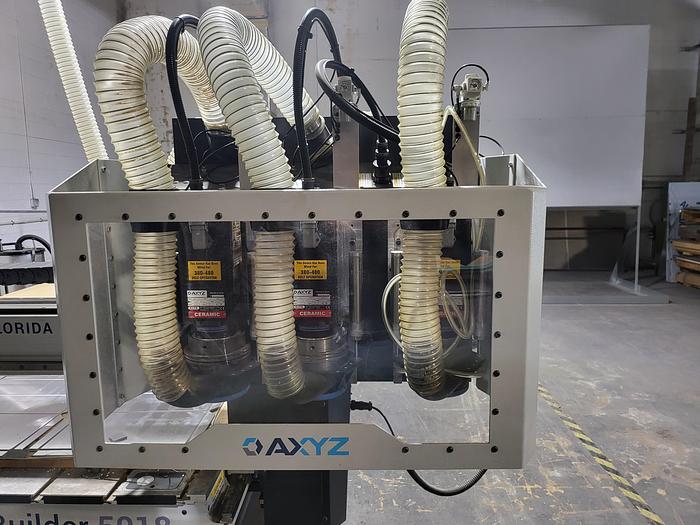

- 6' (72″) X 18' (216″) X 6″ Tri-Headed CNC Router Systems with A2MC Smart Console CNC Controller

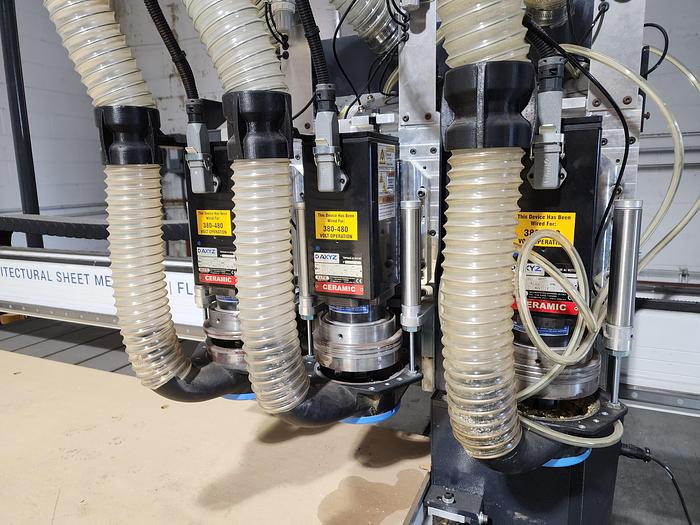

- (3) 5HP 24K RPM ELTE Spindles
- (3) EZ Ryder, Barcode Reader
- Helical Rack Drive on Long Axis
- 6 Servo Drives
- Auto Zone Management
- Precision Spoil Board
- 3X Pop Up Alignment Pins
- ESA/CSA Certification
- (3) Pressure Foot Systems
- (2) UniMister Systems

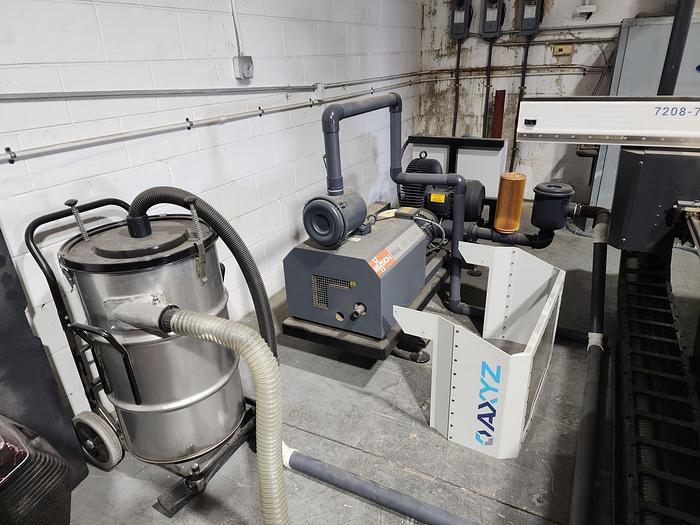

- Complete Dust Extraction System & Material Vacuum Pump with under 42 Hours of operation.
Specifications
Manufacturer | AXYZ |
Model | Panekbuilder 5018 CNC Router |
Year | 2020 |
Condition | Used |
X-Axis | 72" |
Y-Axis | 216" |
Z-Axis | 6" |
Spindle Power | 5 HP |
Spindle Speed | 24,000 RPM |
Installed Dimensions Main Machine | 120” X 252” X 117” |
Installed Dimensions Vacuum & Dust Collector Pumps | 32" X 84" |
Installed Dimensions Dust Collector | 24" X 24" |
