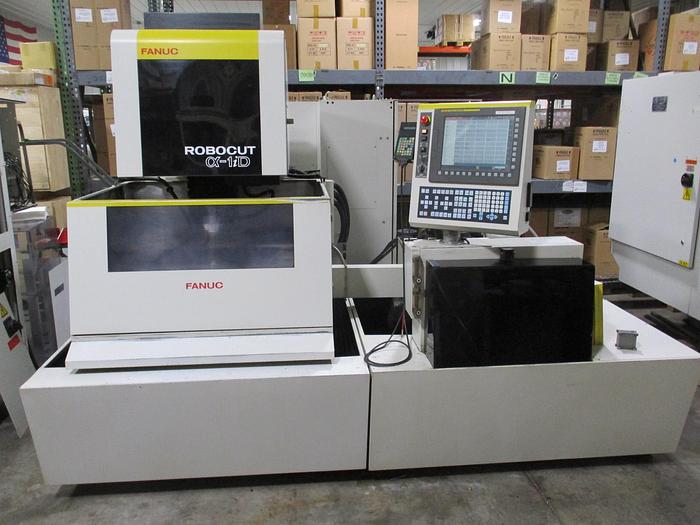

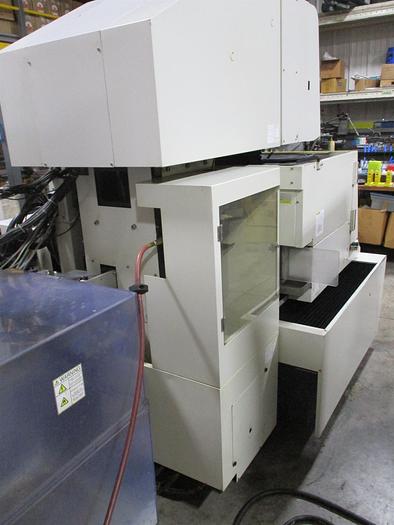

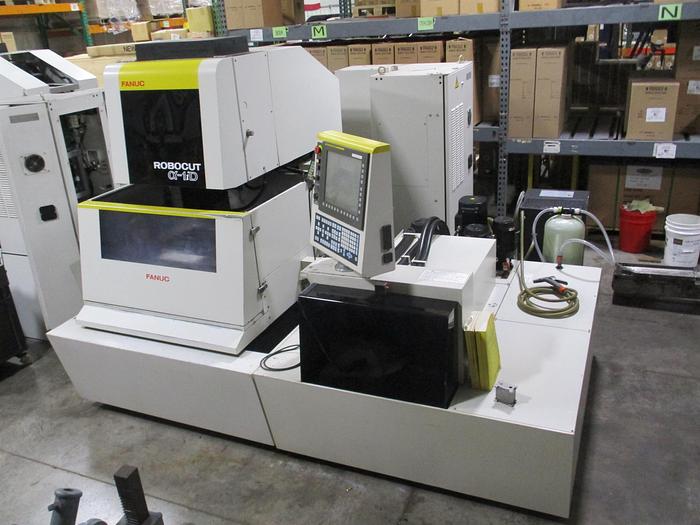

2008 Fanuc Alpha 1iD 12" CNC Wire EDM
![Used 2008 Fanuc Alpha 1iD 12" CNC Wire EDM](https://i.machineryhost.com/82b8a3434904411a9fdc43ca87cee70c/eb43886b1ed60055398cf3e7a22b1989/large-used-2008-fanuc-alpha-1i-d-12-cnc-wire-edm.jpg)
2008 Fanuc Alpha 1iD 12" CNC Wire EDM
Contact us for price
orCall (828) 241-1701
Description

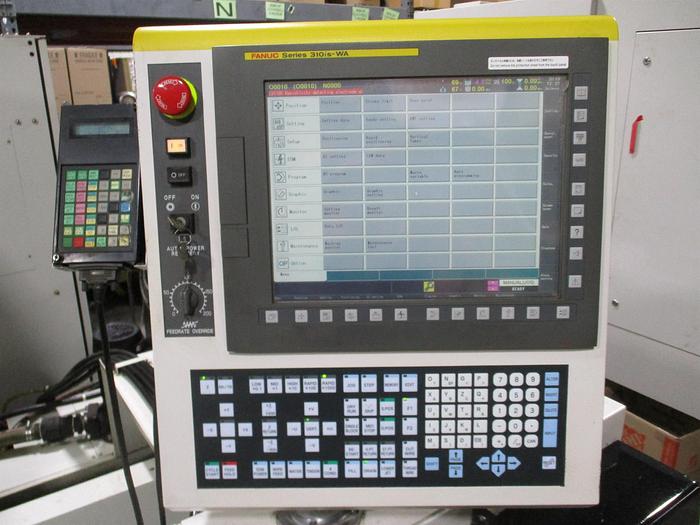

Fanuc 031i-WA Control (5 Processors)
Submerged Cutting
Automatic Wire Threader
X-Y Glass Scale Feedback
15” Color LCD
Ethernet
(2) USB Ports
PCMCIA Port
Wireless Wire Alignment Gage

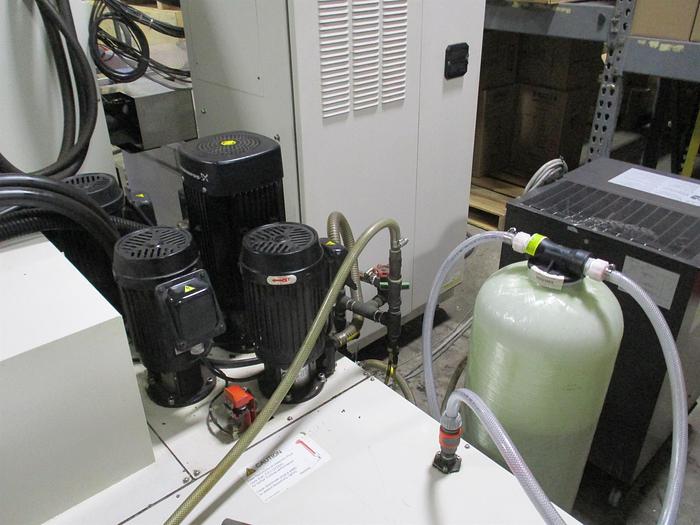

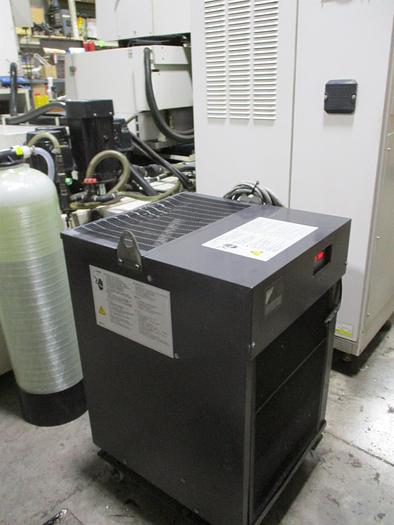

Chiller Unit
All Manuals
Specifications
Manufacturer | Fanuc |
Model | Alpha 1iD 12" |
Year | 2008 |
Condition | Used |
Internal Tank Size | 41.0" x 32.30" x 12.1 |
Max WP Weight | 3,350 lbs. |
Table Travels | 23.6" x 15.7" |
U/V Travel | +/- 3.937" |
Resolution | .000004" |
Taper Angle | +/- 16 degrees @ 12.0" |
Factory Rated Cutting Speed | 31 sq/in/hr (.012" wire in 2.4" D2) |
Wire Diameter | .004" - .012" (Equipped w/.010" Guides) |
Max Workpiece AWF Height | 12.0" |
Max Wire Spool Size | 35 lbs. |
CNC Control | Fanuc 310i-WA (5 Processors) |
Floor Space Required | 112" x 131" x 85" |
Machine Weight | 6,600 lbs. |
Input Power (Total) | 200-220V/3 PH-13kVA |
