2011 Perseo-Erie 430i Drillmate
2011 Perseo-Erie 430i Drillmate
Contact us for price
orCall (828) 241-1701
Description

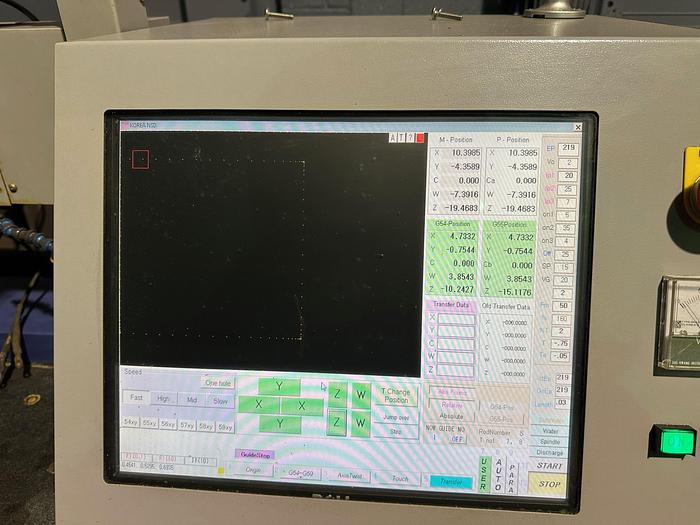

PC Based CNC Controller

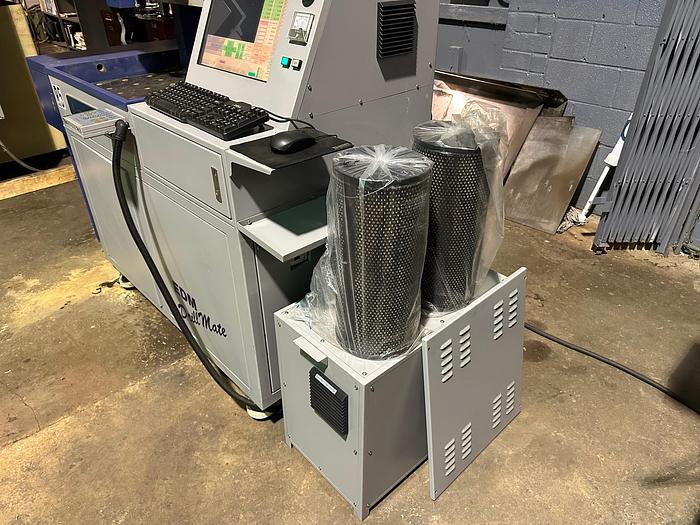

De-Ionized Water Filtration System
15 Gallon Dielectric System
Transformer
Specifications
| Manufacturer | Perseo-Erie |
| Model | 430i |
| Year | 2011 |
| Condition | Used |
| X-Axis | 21" |
| Y-Axis | 12" |
| Z-Axis | 25.6" |
| W-Axis Power Backslide | 11.3" |
| Table Size | 23.5" x 17.25" |
| Table Travels | 21" x 12" |
| Work Tank Dimensions | 27.25" x 19.25" |
| Min. Ram Height to Table | 1" |
| Electro-Guide Travel | 15.5" |
| Electrode Size | 0.1 mm - 3.0 mm |
| Max Z Motor Axis Travel with Chuck | 15.5" |
| Max Workpiece Weight | 675 lbs. |
| Max Workpiece Height | 15.5" |
| Tool Capacity | 22 Station |
| Peak Current Selections | 10 Steps |
| Voltage Selections | 3 Steps |
| Pulse On Time Setting | 0 - 100% |
| Pulse Off Time Setting | 0 - 100% |
| Electrode Spindle Speeds | 0 - 200 RPM |
| Capacitors | 5 Steps |
| Machine Dimensions | 72" x 48" x 96" |
| Machine Weight with Filtration Unit | 3,000 lbs |
