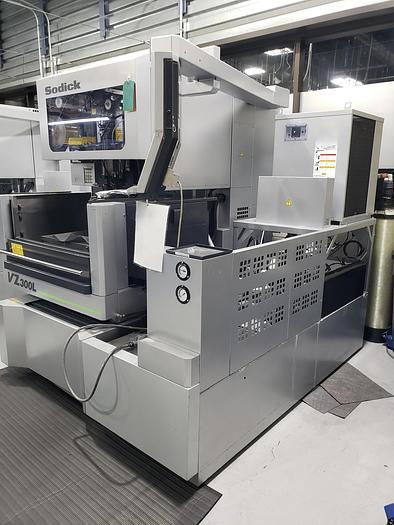

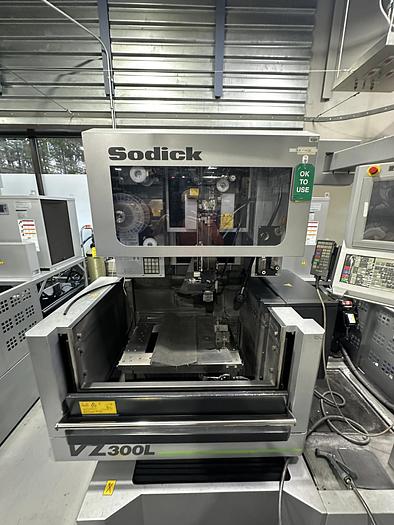

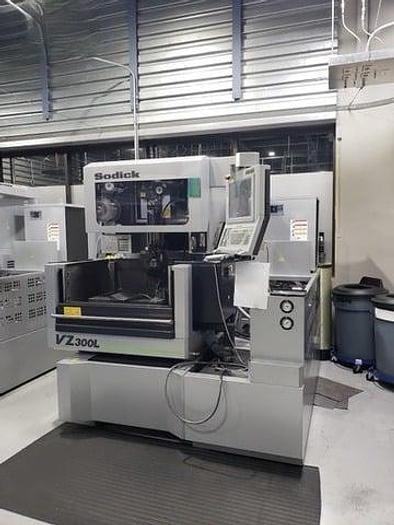

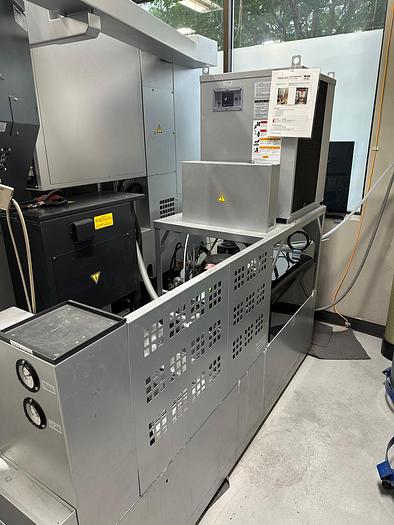

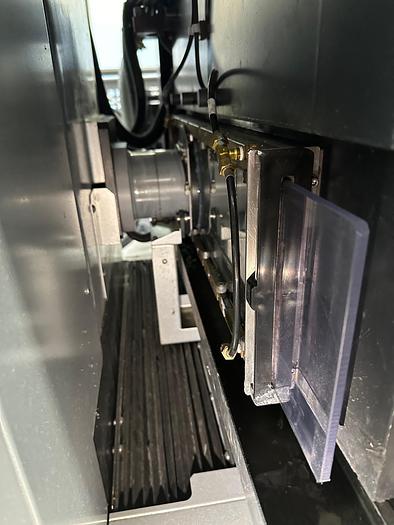

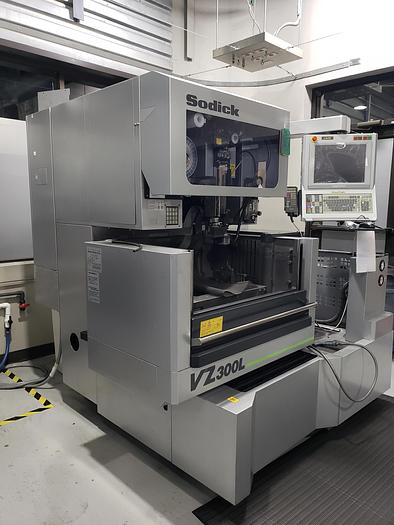

2012 Sodick VZ300L/LN2W Wire EDM
![Used 2012 Sodick VZ300L/LN2W Wire EDM](https://i.machineryhost.com/82b8a3434904411a9fdc43ca87cee70c/331f3799f221757bf4eb58270880daf5/large-used-2012-sodick-vz-300-l-ln-2-w-wire-edm.jpg)
2012 Sodick VZ300L/LN2W Wire EDM
Contact us for price
orCall (828) 241-1701
Description
Sodick LN2W Controls
Linear Motors X, Y, Z Axis
Linear Motor Cooling Unit
Remote Controller
Automatic Water Level Control
AWT

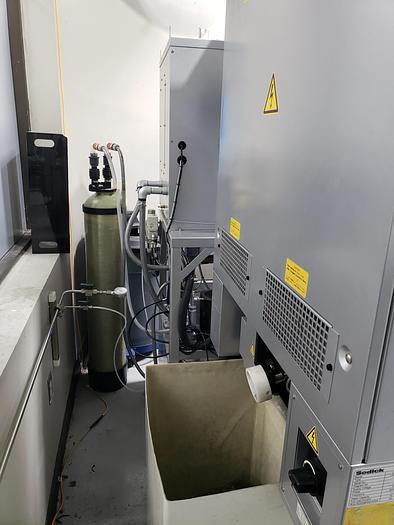

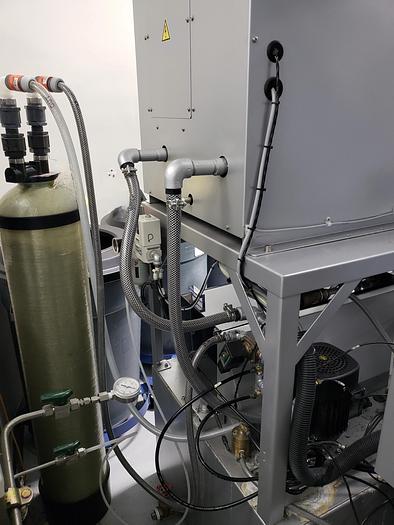

Dielectric Cooling Unit
USB Port
Specifications
Manufacturer | Sodick |
Model | VZ300L/LN2W |
Year | 2012 |
Condition | Used |
X-Axis | 13.77" |
Y-Axis | 9.84" |
Z-Axis | 8.66" |
Work Tank Internal Dimension | 31.88" x 25.59" |
Max Size Workpiece (Subnerged) | 30.7" x 22.44" x 7.87" |
Max Size Workpiece (Flushing) | 30.7" x 22.44" x 8.46" |
Max Weight Workpiece (Submerged) | 770 lbs. |
Max Weight Workpiece (Flushing) | 1,100 lbs. |
Auxiliary Table Travel (UxV) | 3.14" x 3.14" |
Machine Tool Dimensions | 74" x 85" x 77" |
Machine Tool Weight | 5,292 lbs. |
Dielectric Fluid Capacity | 550 Liters |
Wire Diameter | 0.15mm - 0.03mm |
