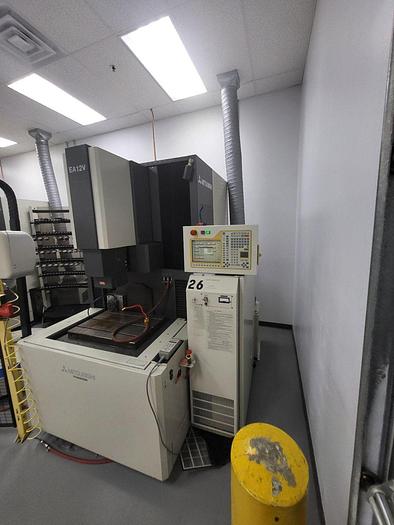

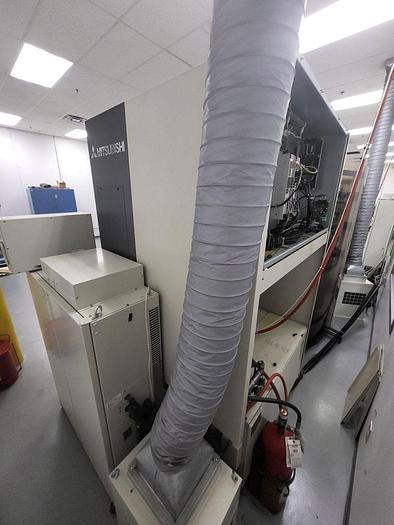

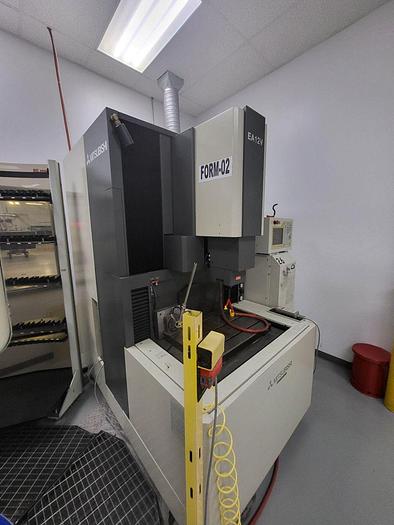

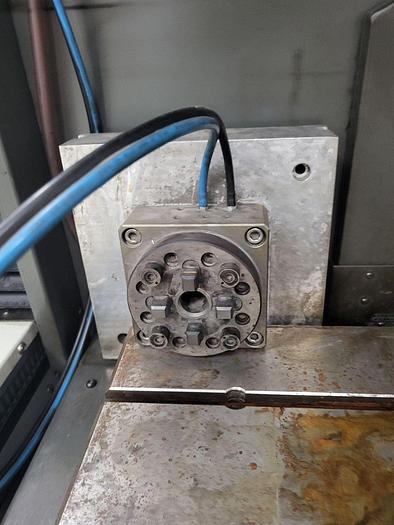

2006 Mitsubishi EA12VM Die-Sinking EDM
2006 Mitsubishi EA12VM Die-Sinking EDM
Contact us for price
orCall (828) 241-1701
Specifications
| Manufacturer | Mitsubishi |
| Model | EA12VM |
| Year | 2006 |
| Condition | Used |
| Stock Number | 7 |
| X-Axis | 15.7" |
| Y-Axis | 11.8" |
| Z-Axis | 11.8" |
| Chuck to Table Clearance | 6" x 17.8" |
| Worktank Size | 37" x 24" x 14" |

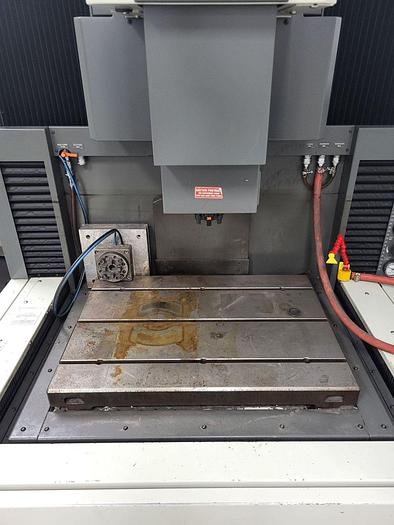

| Table Size | 28" x 20" |
| Tank Type | 3-Sided Drop Tank |
| Max WP Dimensions | 33.5" x 25.2" x 9.8" |
| Max WP Weight | 1,540 lbs. |
| Max Current | 80 amps |
| Max Electrode Weight | 110 lbs / 22lbs with C-Axis |
| Dielectric Capacity | 106 gallons |
| Machine Dimensions | 84" x 56" x 84" |
| Machine Weight | 9,365 lbs. |
